A constant rapid beeping sound coming from the XT-1 Basestation is typically caused by a malfunctioning Keypad.
Typically this will be acompanied by ****** being displayed in the bottom left corner of the XT-1 display.
A replacement keypad will most likely be necessary to resolve this issue but the beeping can be stopped by unplugging the keypad ribbon cable.

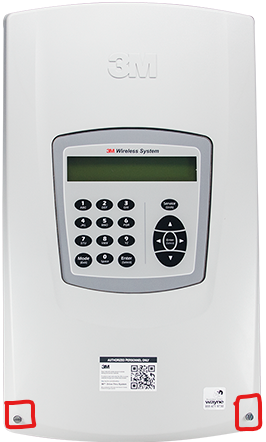

- Loosen the thumbscrews and remove the base station cover.

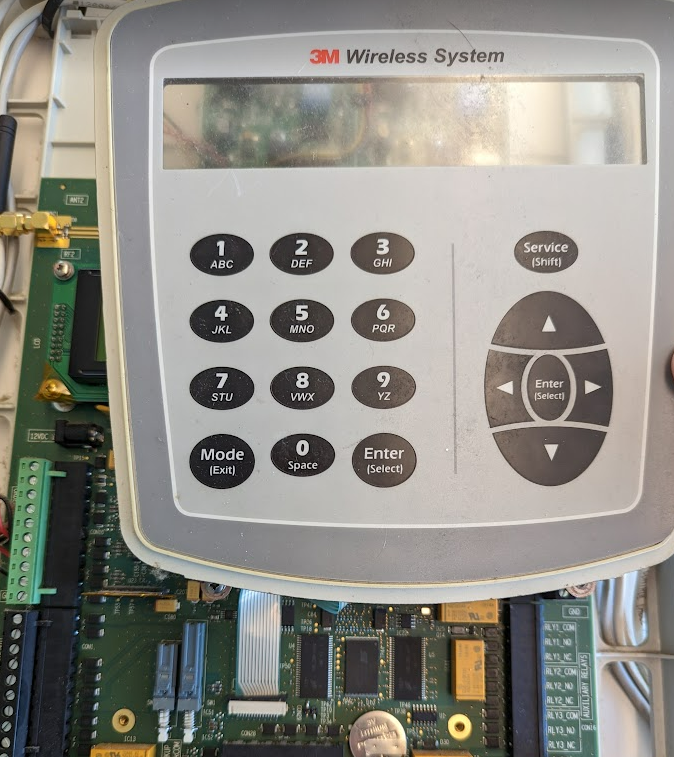

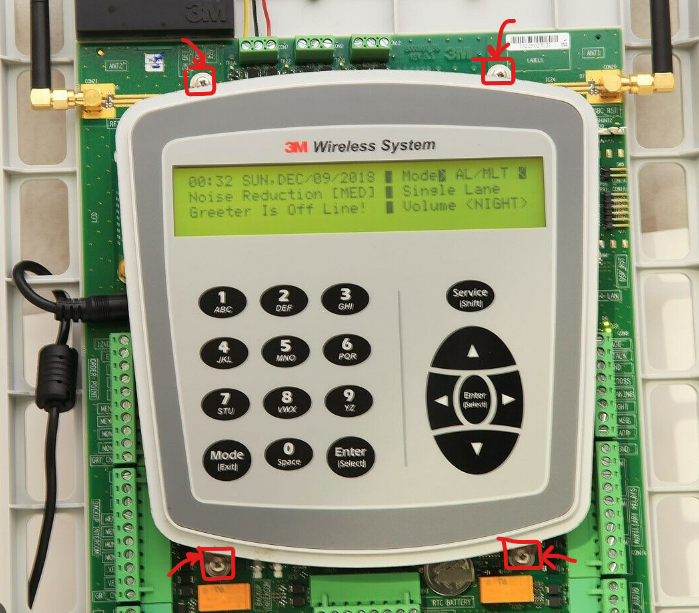

- Remove the 4 screws holding the keypad cover in place.

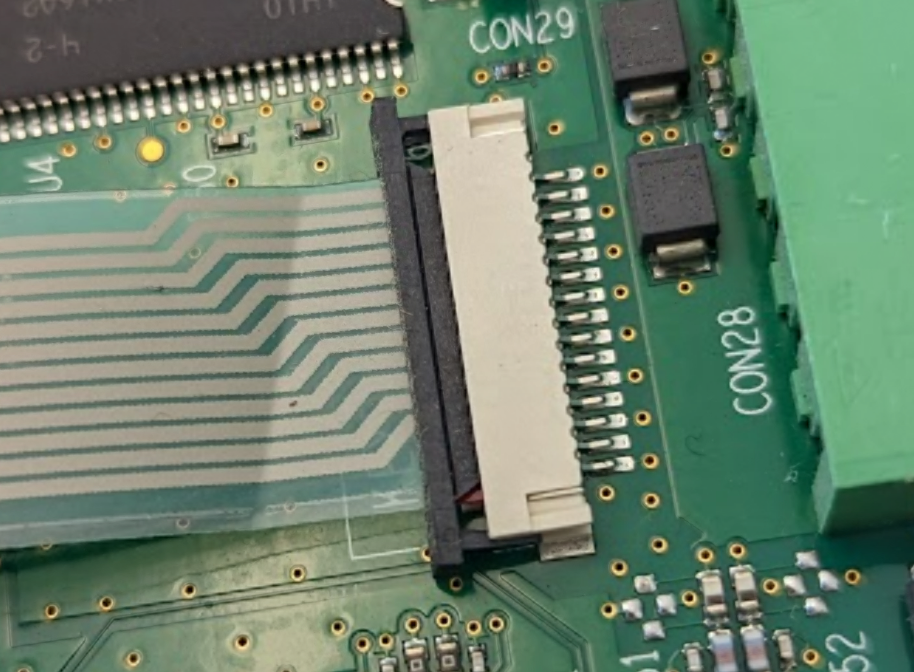

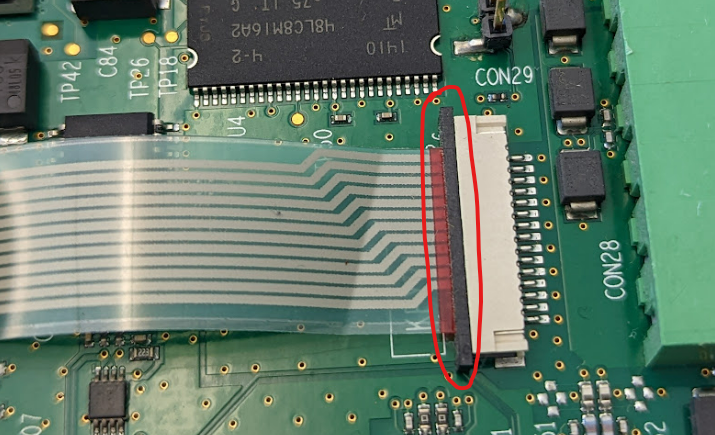

- Gently side the black cable locking bar out to loosen the ribbon cable -- this bar will not come out all the way.

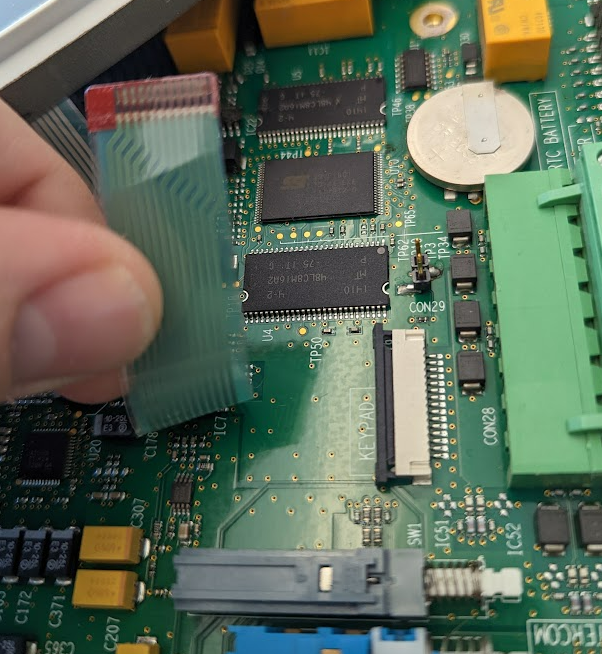

- Slide the Ribbon cable out of the connector.
- Re-mount the Keypad and replace the base station cover.
