iDMB Install Instructions

CLIFF NOTES:

• Time Estimate ~4-5 hours
• This project is (at least) a 2 person job

• Take down old menu board
  • may work best to do this the night before to save time
• Electrician add outlets
  • 4 outlets (2 gang, horizontal) across length of rail
  • Center of outlets should be ~4.5 inches from the ceiling grid. This may change depending on the store
  • Helpful to have each outlet switch controlled, but not necessary.
  • This will take ~2 hours for the electrician (if there's only one electrician)
• TIP: while the electrician is working, install the mount on the DSB
• Note: Tilt set to 5 degrees, this can be adjusted if needed
• Hang up rail
  • may work best to do this night before as well
• Hang TVs
  • Top of TV (DMB) will be 11 3/4"  from top of rail
  • Bottom of TV (DMB) will be 5 3/4"  from bottom of rail
• Power cord plugs in on the back left side of the DMB TV when you're looking at it from the front
  • Velcro the power cables before hanging
• If you would like the TVs to be powered on/off via timer, contact RN
  • DSB will be timer controlled
  • Menu boards usually preferred to be powered via light switch
• Poster/Portrait side TV (DSB) outlet should be placed in upper left or right quadrant of where the TV will hang. Needs to be hidden behind TV.
  • Put the outlet on whichever side (left/right) is furthest away from customer view
  • A recessed outlet is ideal, but not necessary
  • If your pickup box is next to this TV, you may need to hang it higher.
    • The top of this DSB mount to the ceiling can be no higher than 19"
    • Do not use supplied anchors that come with mount, recommended to use toggle bolts

SPECS

TV Specs

Each 43" TV = 38.2" w x 22" h

5 TVs = 191" (15ft 11in)

4 TVs =  152.8" (12ft 9in)

Rail mounting system

5 TV setup = 187" (15ft 7in)

4 TV setup = 147.6" (12ft 3.6in)

FULL INSTRUCTIONS

Assemble the 3 rail pieces with the rail extensions (ADB-RX) and wall plates (ADB-WP).

Rail extensions go on the side with 4 chambers. Wall plates go on the side with 3 chambers

Place your wall mounting plates on the rail according to where the studs are.

Rail extensions

This side of the rail goes up against the wall

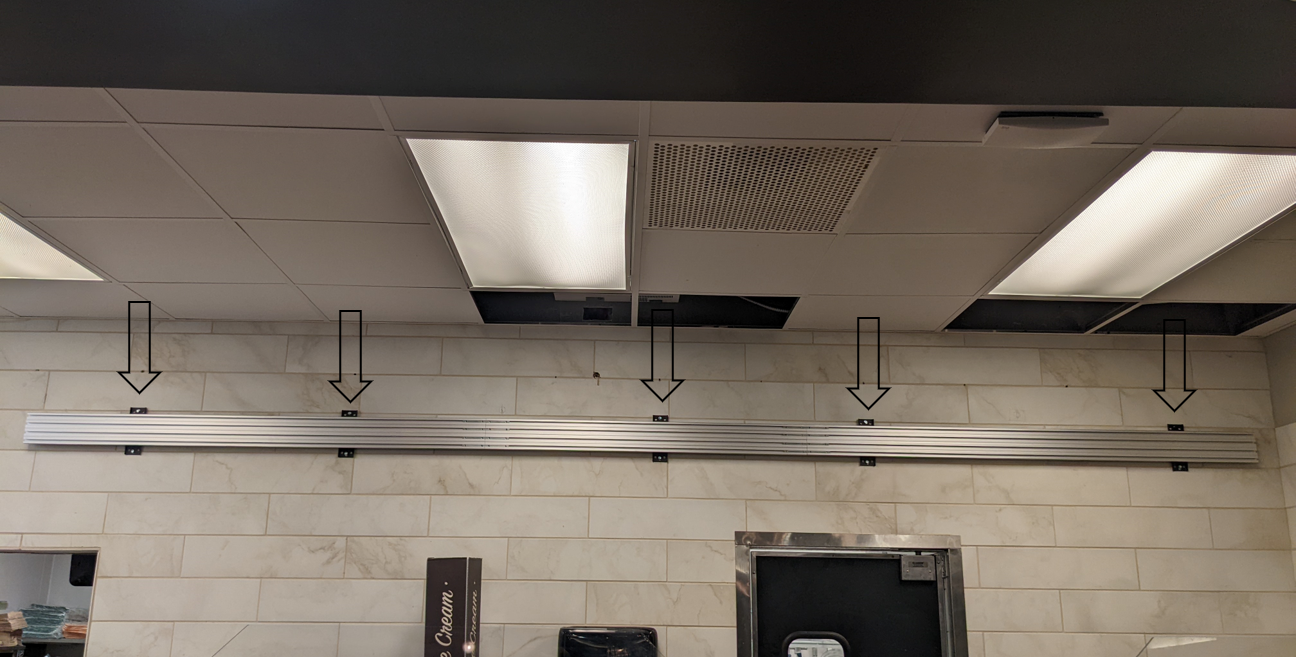

Place and tighten mounting plates on the rail according to where the studs are before hanging the rail (arrows indicate studs at this store)

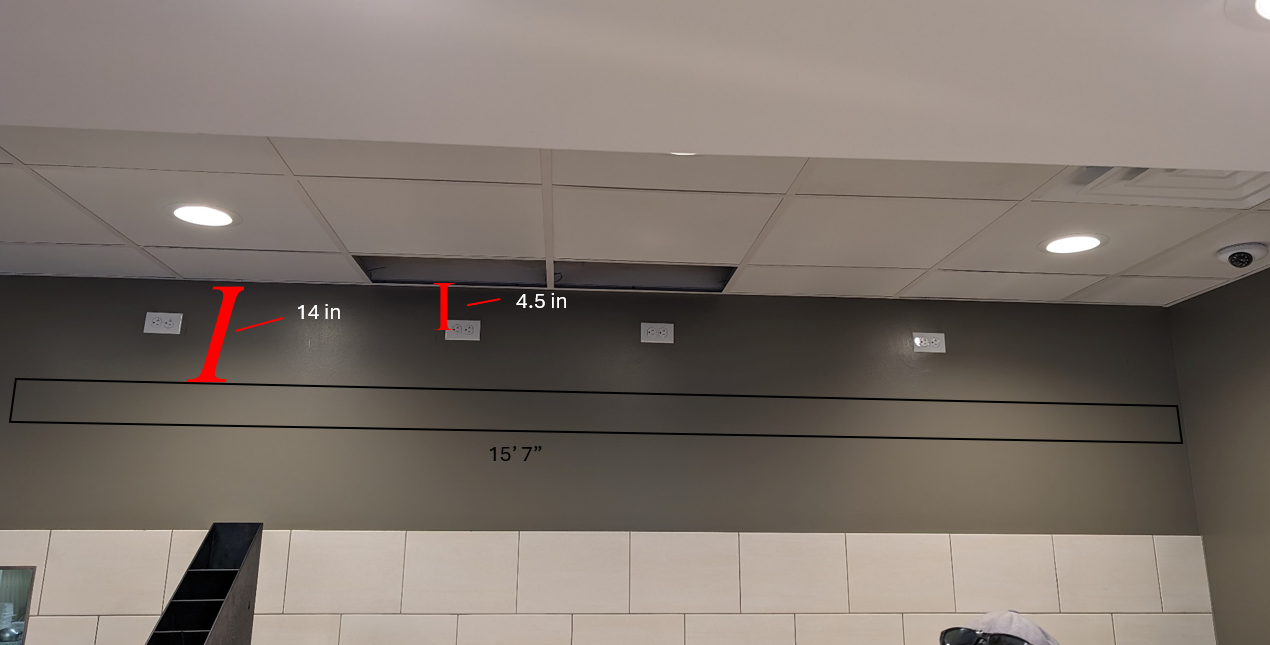

Mock up

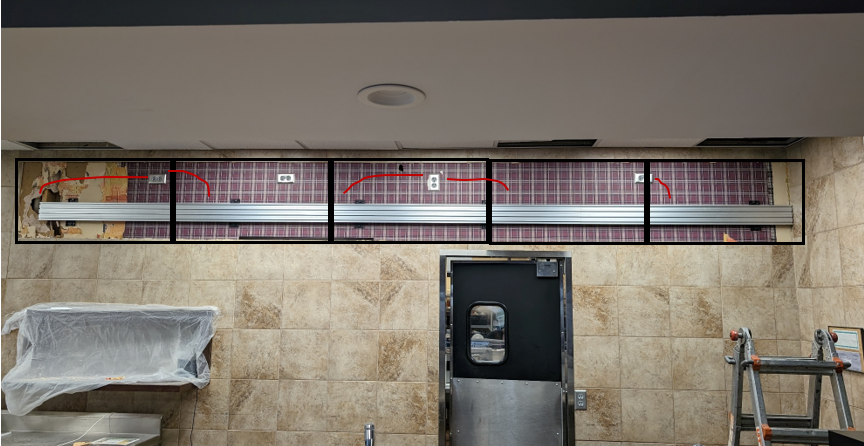

Mock up 2 - red lines indicate TV power cables

Before attaching the VESA mounting brackets to the TVs, adjust the tilt to 5 degrees (this can change depending on the store, but 5 degrees usually looks best) - this is already done by RN

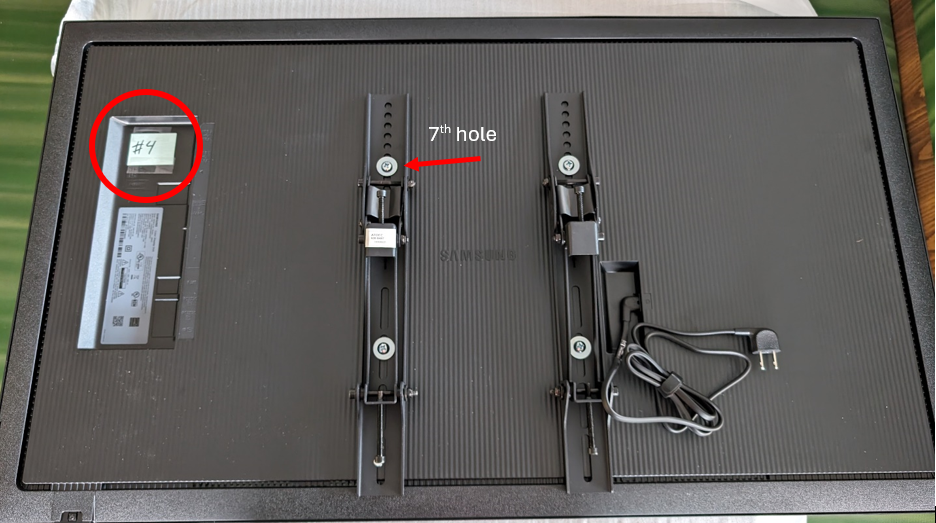

Attach the brackets to the back of the TVs, using the 7th hole from the top - this is already done by RN

Hang in the correct order as labeled on the back of the TVs (circled above), numbered 1-5 left to right when viewing as a customer.

Use velcro strips to tie up/shorten the power cable for each TV so that they are not hanging down.

DSB

• Poster/Portrait side TV outlet should be placed in upper left or right quadrant of where the TV will hang. Needs to be hidden behind TV.
  • Put the outlet on whichever side (left/right) is furthest away from customer view
  • A recessed outlet is ideal, but not necessary
  • If your pickup box is next to this TV, you may need to hang it higher.
    • The top of this mount to the ceiling can be no higher than 19"
    • Do not use supplied anchors, recommended to use toggle bolts

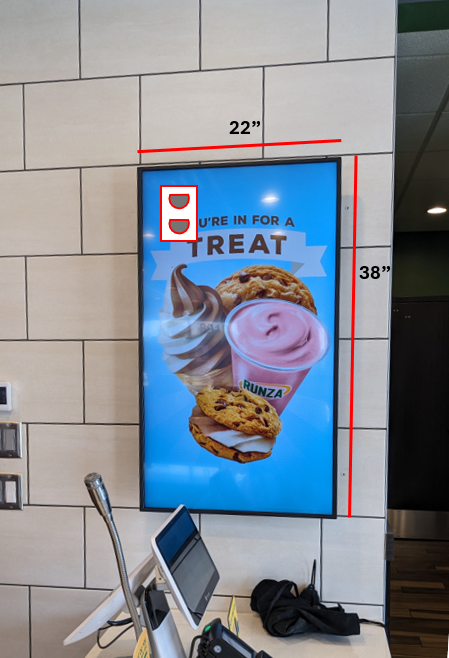

Example of DSB mounted higher due to pickup box

TVs should automatically connect to the "RUNSEC" wireless network. After you've installed, check with Karlee to make sure they're all online
